These tanks could be used for the main water storage unit for military camps, villages, cities, etc.
BS 1564 tanks are applicable for any outdoor application and can withstand steel. 131 Level Residence minimally impacts the environment by utilizing recycled building materials and a large 20 kW solar system for power generation.
Incorporating passive design techniques, each dwelling efficiently regulates ambient temperature, significantly reducing heating and cooling costs.
● Drinkability can be used for household water storage to solve daily water storage problems.
● Smooth and beautiful surface, easy to clean
● High impact resistance, strong seismic performance, and the best tensile strength and yield strength material.
● With reliable quality and high-temperature resistance, especially when the outdoor temperature exceeds 40 degrees.
● Easy to install; use the bolts provided by us to assemble so that the installation is very easy and will not leak.
● Space-saving, galvanised steel water tank is assembled by panels, saving space and convenient for transportation.
The steel used in the manufacture of the tank plates, stays, and cleats conforms to the requirements of BS 4360: 1972 grade 43A or ISO equivalent.
The tank plates are pressed with a combined double flange at an angle of 45 degrees and 90 degrees to the face of the plate on four sides
The stays and cleats are made of steel angle bar and steel plate.
Hot-dipped Dipped Galvanized steel bolts, nuts and washers for internal and external
Non-toxic PVC foam is to be used for all jointing between the tank panel flanges.
Panel type or pitched type steel cover supported by trusses, 600 x 600 square manhole and 100 mm air-vent supplied as standard for each compartment
Aluminium or HDG Steel ladder for internal and external access
Hot Dip Galvanized conforms to BS 729 or ISO equivalent black Bituminous Coated.

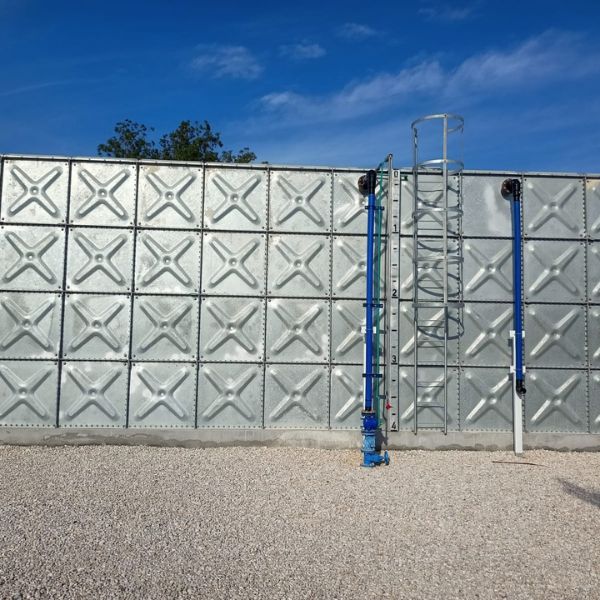

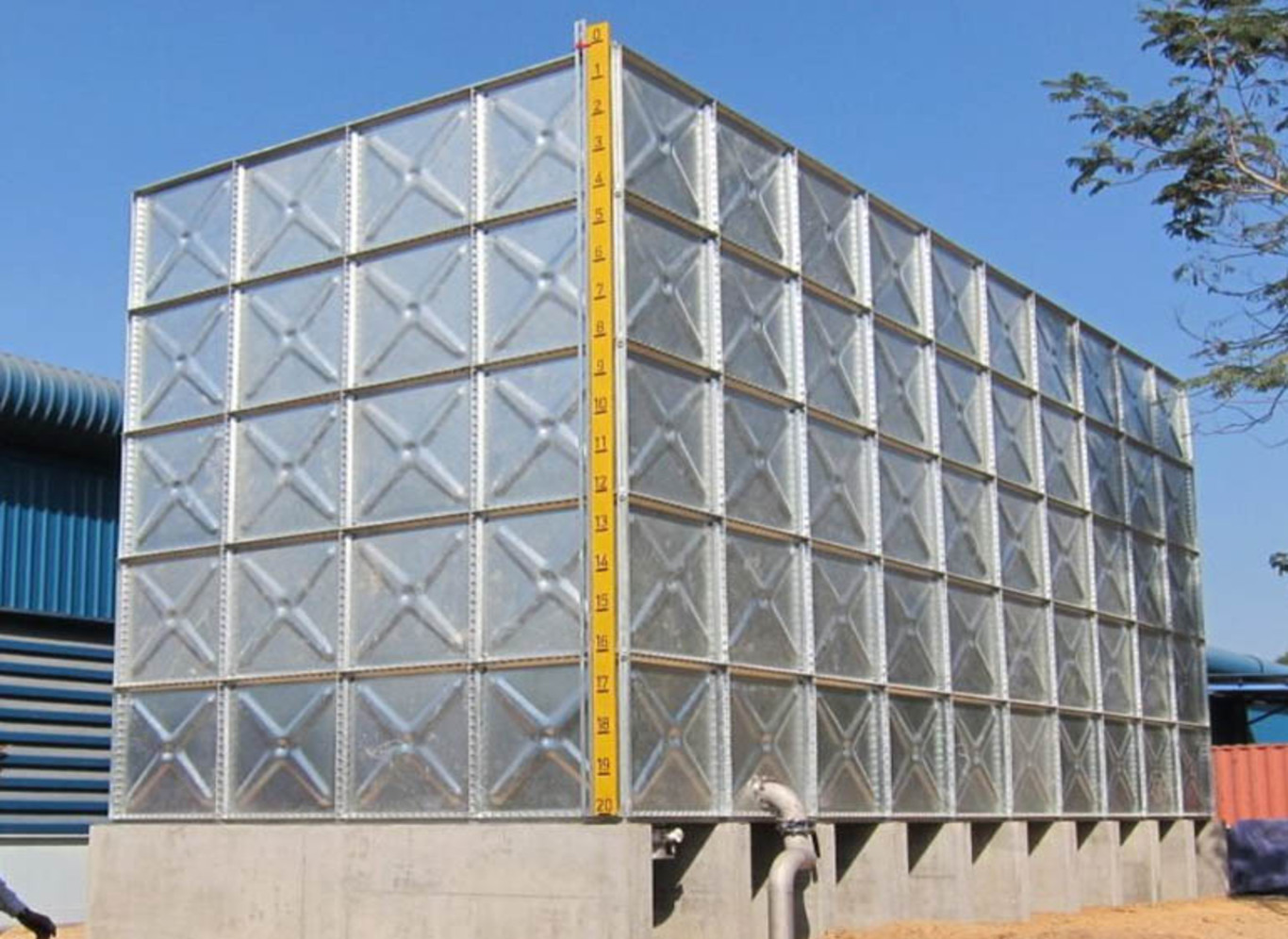

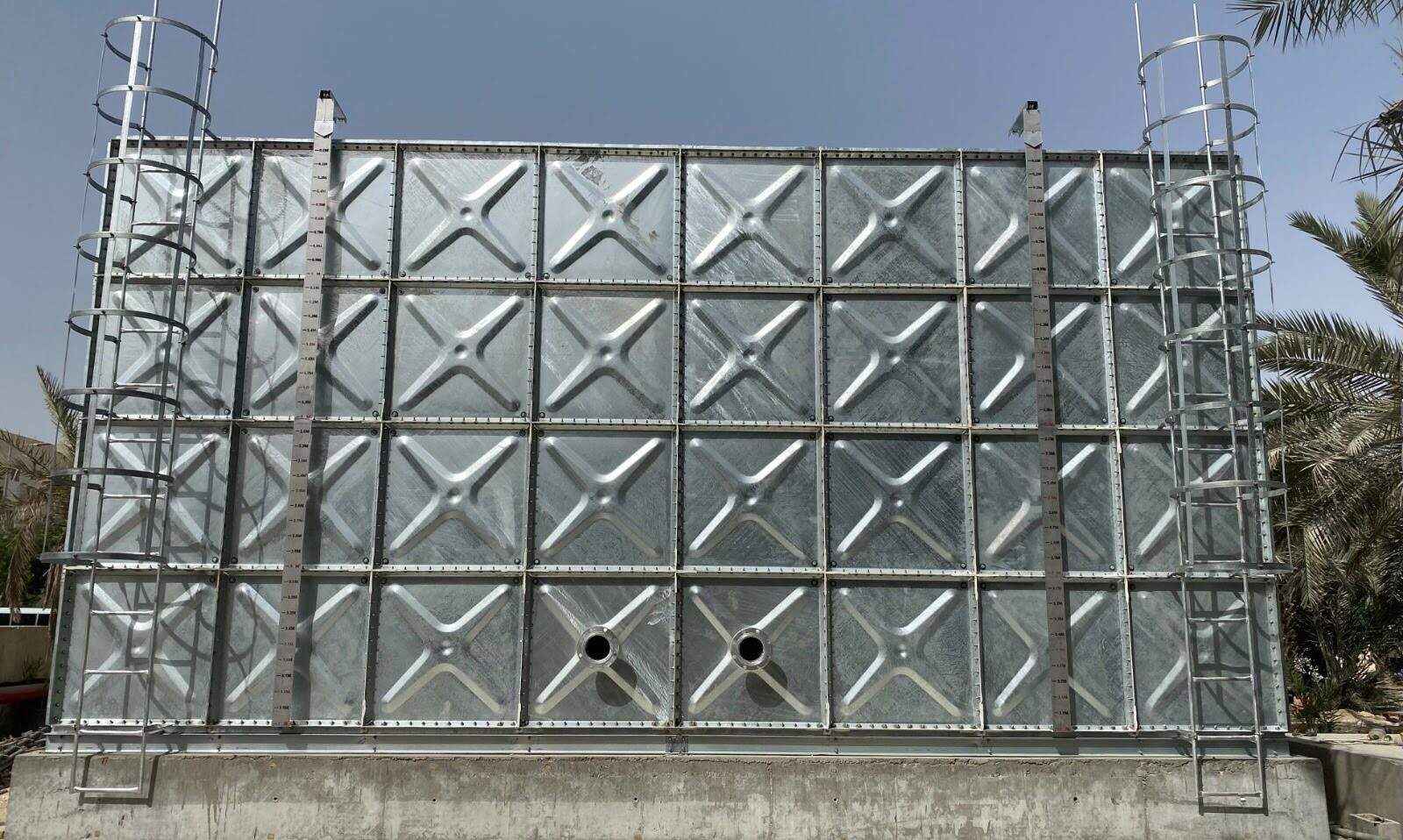

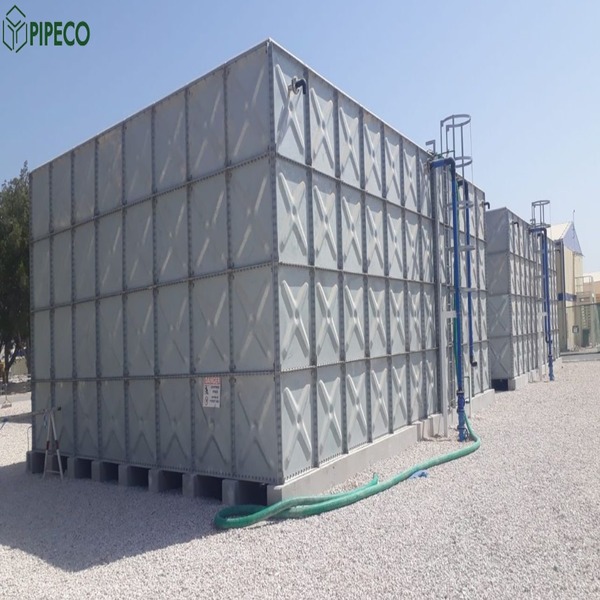

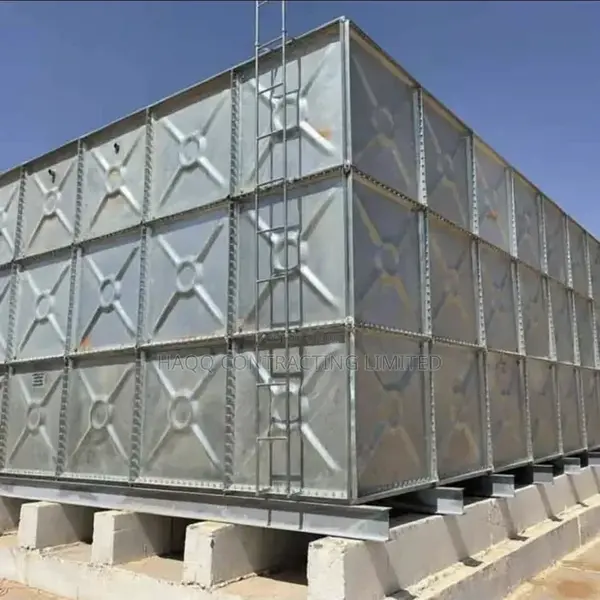

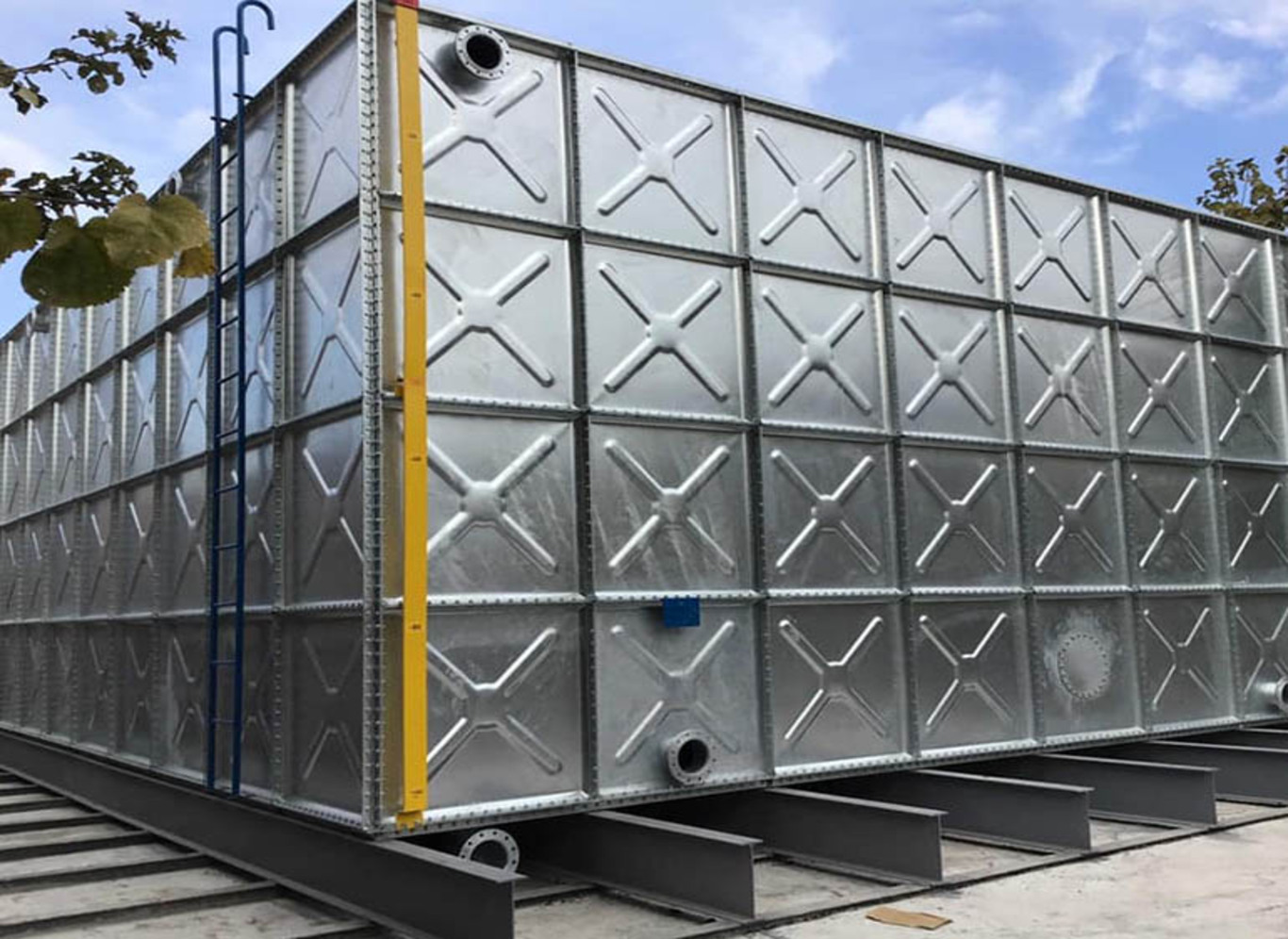

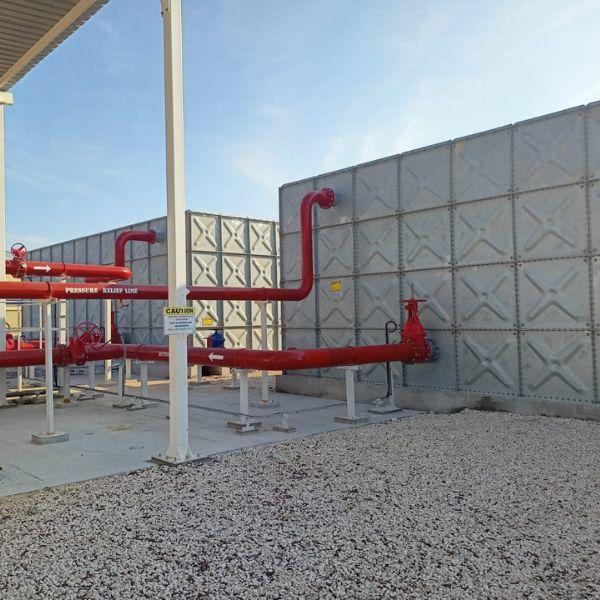

Some of Our HDG Water Tanks
